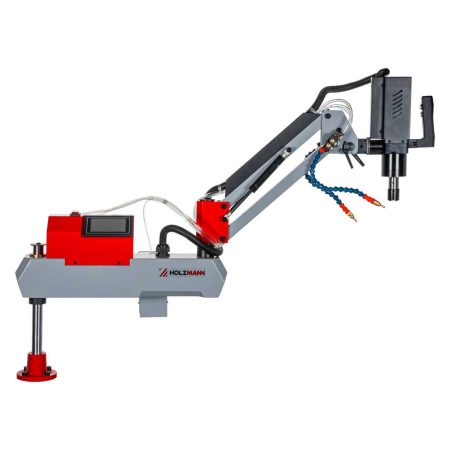

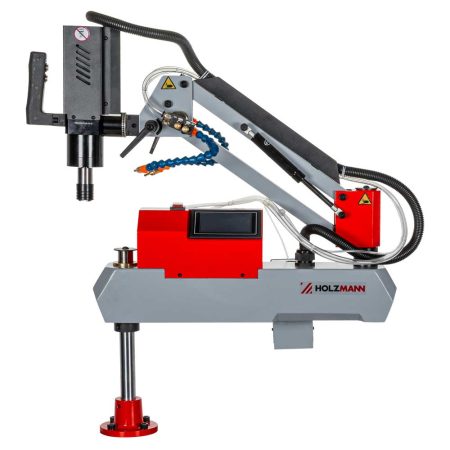

Električni navojni stroj GSM16E_R11_230V

highlights

• collet set with torque limiting clutch
• thread diameter range M3-M16 (steel); M3-M20 (aluminium)

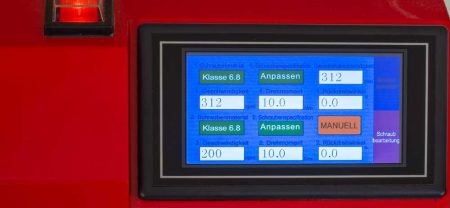

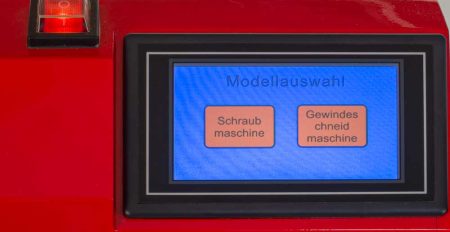

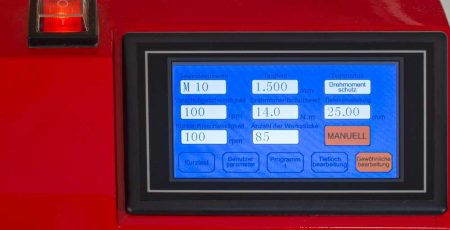

• touchscreen for setting machine-operation-adjustments (setting thread size, cutting depth,…)
• selection of 2 cutting modes: Manual (forward/reverse can be activated manually); Automatic (reverse is activated automatically after the preselected thread depth is reached)

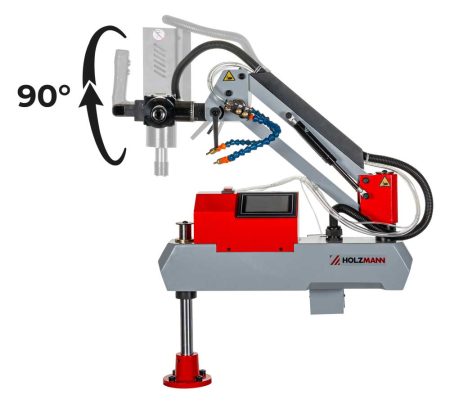

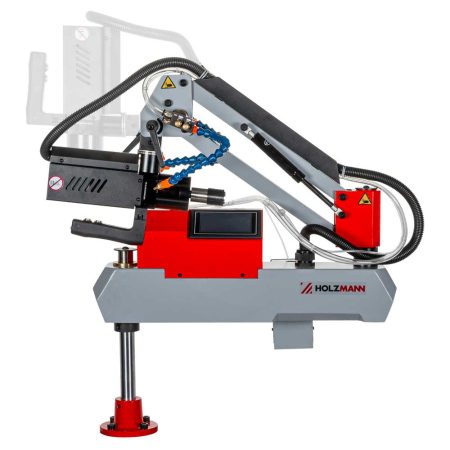

• cutting head can be swivelled 90
• cooling device (air-oil cooling) available, working pressure: 6-8 bar, oil volume ~ 200ml

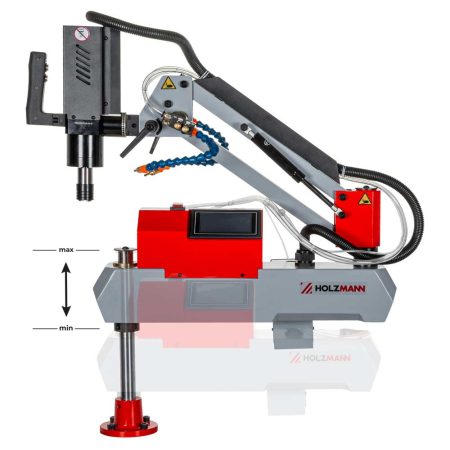

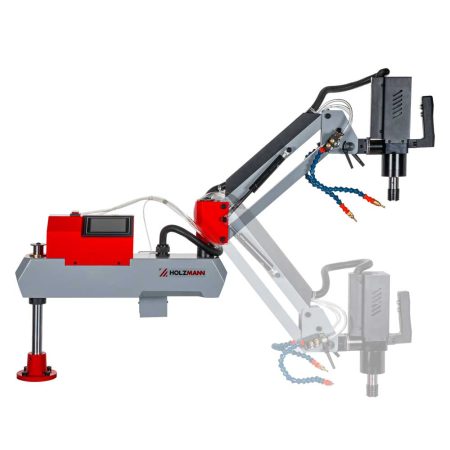

• max. working range arm: 1030 mm, height adjustment max. 400 mm

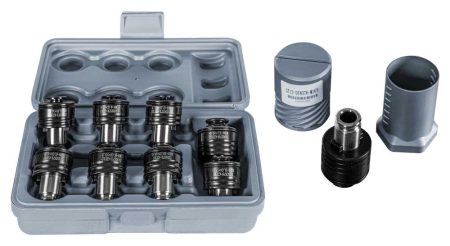

Included in delivery: incl. collet set (DIN371:M3,M5,M5,M6,M8,M10; DIN376: M12,M14,M16)

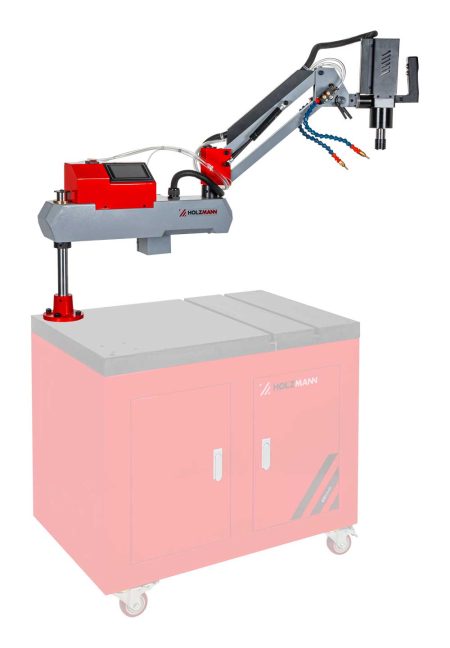

optional accessories: machine stand GMMS
