PULS INVERTER WELDING SYS. ACDC TIG/MMA PISA235ACDC

highlights

• gas pre-flow time: 0-30 s
• gas post-flow time: 0 – 60 s
• spot welding frequency: 0.1 – 10 s
• spot welding time: 0 – 5 s
• MMA welding
  • welding current range: 10 – 200 A
  • AC frequency: 20 – 400 Hz
  • Hot start time 0 – 2 s
• TIG welding
  • welding current range: 2 – 235 A DC
  • welding current range: 3 – 235 A AC
  • Current reduction time: 0 – 30 s
  • Current rise time: 0 – 60 s
  • Pulse frequency DC: 0.1 – 999.9 Hz
  • Pulse frequency AC (square wave): 0.1 – 500 Hz
  • Pulse frequency AC (sine wave): 0.1 – 10 Hz
  • Basic pulse ratio: 5-95%
  • Basic pulse current: 3 – 95 %
  • TIG arc ignition: HF/Lift/Live

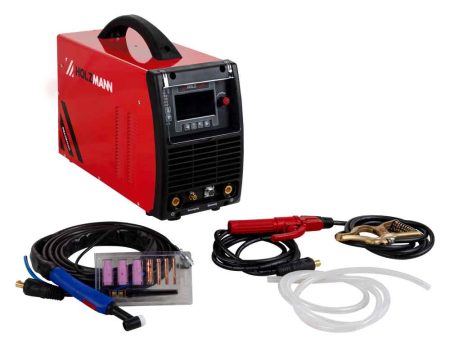

Included in delivery: TIG welding torch, electrode holder, torch cap (short/long), gas nozzles, clamping sleeve housing and clamping sleeves, gas hose, earth clamp, pressure relief
